產(chǎn)品詳情
SLP12/T性能
| 頻率范圍 (-10dB) | 90 Hz – 20 kHz |
| 頻率響應(±3 dB) | 110 Hz – 15 kHz |
| 額定功率 | 60 W Continuous Program (2 hrs) 30 W (160 W Peak), Continuous Pink Noise (2 hrs) 20 W (80 W Peak), Continuous Pink Noise (100 hrs) |
|
靈敏度 |
84 dB (80 Hz – 20 kHz) half-space (mounted on a wall) |
| Maximum SPL | 105 dB peak (99 dB continuous, 2 hr) @ 1m |
| 覆蓋范圍 | 130° horizontal x 130° vertical |
| Directivity Factor (Q) | 6.1 |
| Directivity Index (DI) | 7.8 dB |
| 標稱阻抗 | 8? (at 8? tap setting) |

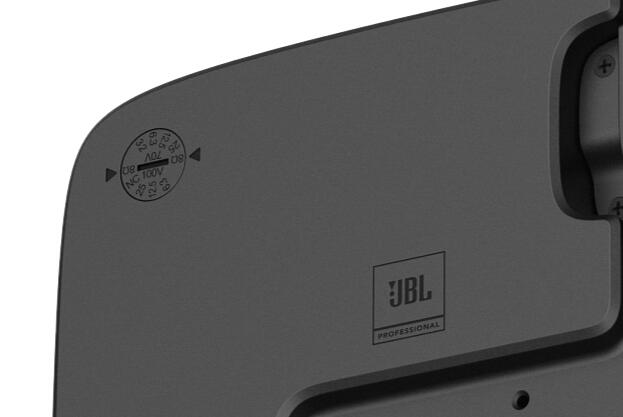

| 變壓器抽頭 | 70V: 15 W, 7.5 W, 3.8 W, 1.9W 100V: 15 W, 7.5W, 3.8W |
| 驅(qū)動單元 | 75mm (3 in) full-range driver, polypropylene cone 20 mm (0.8 in) voice coil on Kapton™ voice coil former |
| Terminals | Terminals 4-pin Euroblock connector for bare wire |
| 音箱材料 | Polycarbonate + ABS, UL94V-0 flammability rated |
| 顏色 | Black or white |
|
尺寸 |
248mm wide x 230mm high x 100mm deep (9.8 x 9.1 x 3.9 in) |
| 凈重量 | 2.1kg (4.6 lbs.) |
|
隨附配件 |
Wall-mount slide-on bracket (speaker and wall sides), 4-pin Euroblock plug, protective terminal cover for outdoor use. |
SLP14/T性能
| 頻率范圍 (-10dB) | 85 Hz – 20 kHz (on wall) |
| 頻率響應(±3 dB) | 105 Hz – 17 kHz (on wall) |
| 額定功率 | 90 W Continuous Program (2 hrs) 45 W (180 W Peak), Continuous Pink Noise (2 hrs) 30 W (120 W Peak), Continuous Pink Noise (100 hrs) |
|
靈敏度 |
86 dB (60 Hz – 20 kHz) half-space (mounted on a wall) |
| Maximum SPL | 108 dB peak (102 dB continuous, 2 hr) @ 1m |
| 覆蓋范圍 | 140° horizontal x 140° vertical |
| Directivity Factor (Q) | 6.0 |
| Directivity Index (DI) | 7.7 dB |
| 標稱阻抗 | 8? (at 8? tap setting) |
| 變壓器抽頭 | 70V: 25 W, 12.5 W, 6.3 W, 3.2W 100V: 25 W, 12.5 W, 6.3 W |
| 驅(qū)動單元 | 100 mm (4 in) woofer, polypropylene cone 25 mm (1 in) voice coil on Kapton™ voice coil former, plus 1” silk-dome tweeter with neodymium magnet with aluminum former |
| Terminals | 4-pin Euroblock connector for bare wire |
| 音箱材料 | Polycarbonate + ABS, UL94V-0 flammability rated |
| 顏色 | Black or white |
|
尺寸 |
286mm W x 263mm H x 100mm D (11.3 x 10.4 x 3.9 in) |
| 凈重量 | 2.8kg (6.2 lbs) |
|
隨附配件 |

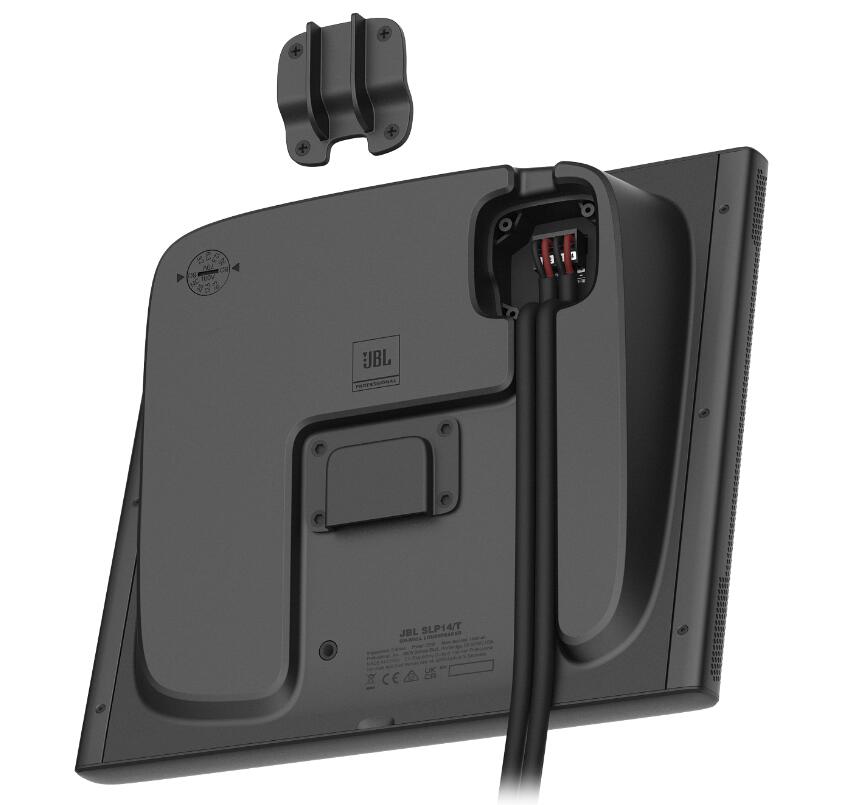

Wall-mount slide-on bracket (speaker and wall sides), 4-pin Euroblock plug, protective terminal cover for outdoor use |
